Dorma Floor Spring BTS-60 – 80 Kg | Dormakaba
Price range: ₹9,324 through ₹19,733
Inclusive of all taxes
Key Features
Brand: Dorma Kaba
Door Weight: Up to 80 Kg
Door Width: Up to 1000 mm
Finish: SS
For double action glass, wooden and aluminium doors
Hold-open at 90° with two adjustable closing speed valves
Shallow body – needs minimal floor cutting
Product details
| Weight | N/A |
|---|---|
| Item Name | BTS-60 Machine Only, BTS-60 Glass Package with Lock (GDP-D) |
| Brand | Dorma Kaba |
| Finish | SS |
| Unit | Piece (Machine) / Set (Package) |
| Types | Floor Spring |
| Door Weight Capacity | Up to 80 Kg |
| Model Number | BTS-60 |
Description

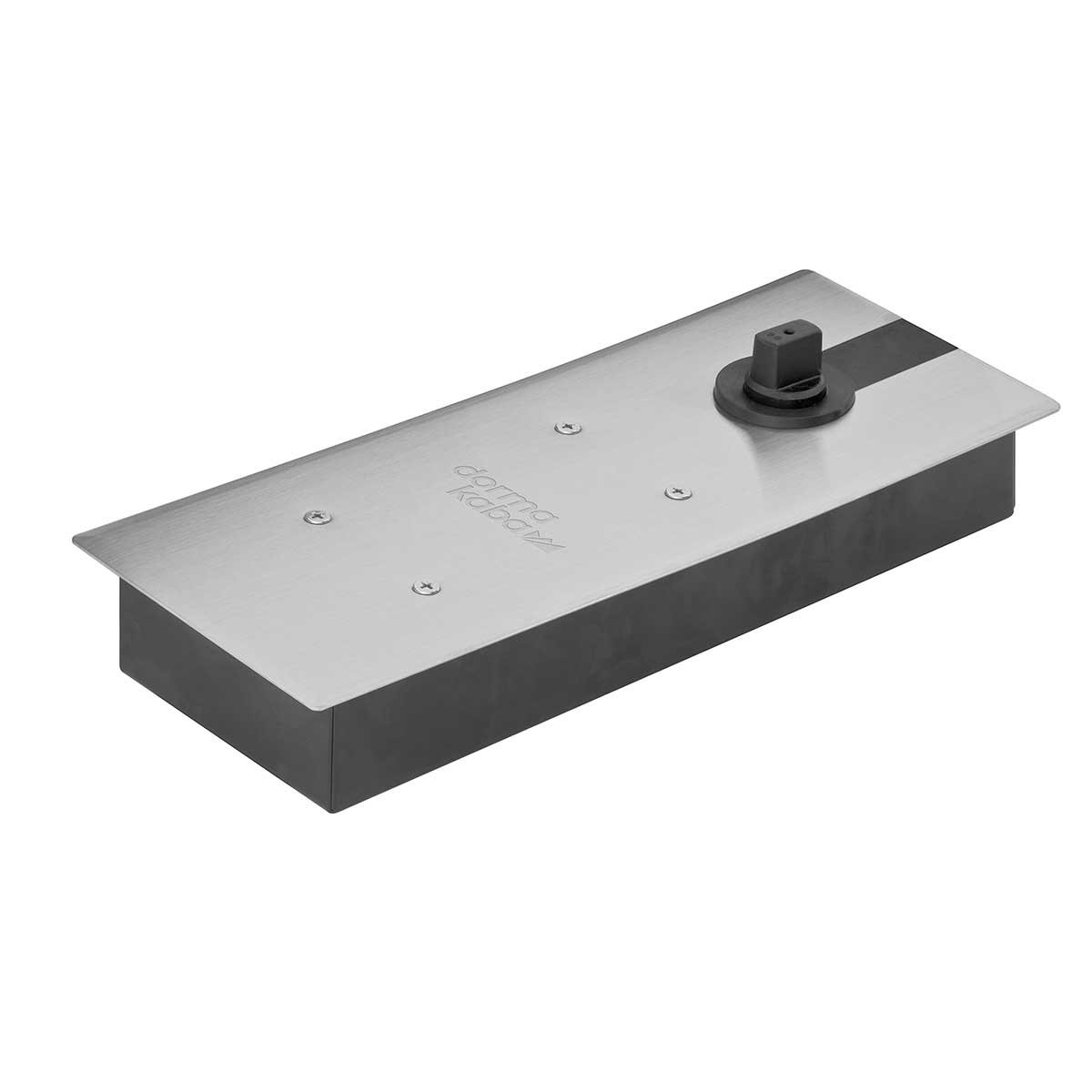

Dorma Floor Spring BTS 60 – Basic Floor Spring for Double Action Doors
The Dormakaba BTS 60 is a compact dorma floor spring for light-traffic double action doors weighing up to 80 kg and up to 1000 mm wide. It sits hidden in the floor under the door, controls the door’s swing and brings it back to the closed position smoothly from either side. Its shallow body needs less floor cutting than most floor springs, which makes it practical for homes, shops, clinics and offices where floor depth is limited. This version comes with a built-in hold-open at 90°, so the door can stay open when you need it to.
Choose the floor spring machine on its own, or the complete glass door floor spring package (Dormakaba GDP-D) with ULPT patch fittings and corner lock.
Choose Your Option
| Option | What You Get | Best For |
|---|---|---|
| Machine Only (1 Pc) | BTS 60 floor spring with stainless steel cover plate | Replacing an old floor spring, or doors that already have fittings |
| Glass Package with Lock – GDP-D (1 Set) | BTS 60 floor spring + ULPT top pivot, bottom and top patch fittings, and corner lock with strike plate | New frameless toughened glass doors |
What’s in the Glass Package with Lock (GDP-D)
- BTS 60 floor spring for glass door – 1 pc
- ULPT 24 top pivot – 1 pc
- ULPT 10 bottom patch fitting with SS cover – 1 pc
- ULPT 20 top patch fitting with SS cover – 1 pc
- UL US10 corner lock with SS cover, 60 mm EPC (euro profile cylinder) and strike plate – 1 pc
Dorma BTS 60 – Key Features
- 80 kg Door Capacity – Size 3 spring strength for doors up to 80 kg and 1000 mm wide.
- Double Action – The door opens in both directions and returns to the centre.
- Hold-Open at 90° – Keeps the door open at 90° when you need it to stay open.
- Two Closing Speed Valves – One valve sets the speed from 130° to 15°, the second controls the final 15° to 0°, so the door closes firmly without slamming.
- Shallow, Compact Body – Needs a smaller floor recess, which makes installation easier.
- Stainless Steel Cover Plate – Sits flush with the floor for a clean finish.
- Hydraulic Control – Smooth, low-effort door operation every day.
Where to Use the Dormakaba BTS 60
The BTS 60 is designed for doors with light to moderate daily use, such as:
- Glass shop fronts and showroom doors
- Office cabin and conference room glass doors
- Clinics, salons and small restaurants
- Glass partitions and swing doors in homes
- Aluminium and wooden double action doors (with the right fittings)
For very busy entrances, or doors that must close against strong wind, a heavier-duty floor spring such as the Ozone FS-9400 (up to 150 kg) is the better choice. Ask us if you are unsure.
Dormakaba BTS 60 – Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dormakaba (Dorma) |
| Model | BTS 60 |
| Type | Hydraulic floor spring, double action |
| Spring Strength | Size 3 |
| Maximum Door Weight | 80 kg |
| Maximum Door Width | 1000 mm |
| Closing Speed Control | Two valves (130°–15° and 15°–0°) |
| Hold-Open | Yes, single-point hold-open at 90° |
| Cover Plate | Stainless steel |
| Suitable Doors | Glass, aluminium and wooden double action doors |
| Shipping Weight | 6 kg (Machine Only) / 8 kg (Glass Package) |
For dimensions and the floor recess drawing, download the official Dormakaba BTS 60 technical brochure (PDF).
Explore Other Floor Springs
Comparing options? Our Floor Spring range also includes the Dorset Floor Spring Complete Set CS 80 WL, an 80 kg glass door set with patch lock, and the Ozone Floor Spring Complete Set FS-8400. For single action wooden doors, browse our Door Closing Systems or see the Dormakaba ITS-96 Concealed Door Closer.
Frequently Asked Questions
What is a floor spring?
A floor spring is a hydraulic door closer fitted into the floor under the door. It carries the door’s weight, controls its swing and closes it automatically. It is the standard choice for frameless glass doors because nothing is visible on the glass or the frame. To see how floor springs compare with overhead door closers, read our door closer prices in India guide.
What is the difference between Machine Only and the Glass Package?
Machine Only is the BTS 60 floor spring unit with its cover plate. The Glass Package with Lock (GDP-D) adds the ULPT 24 top pivot, ULPT 10 bottom patch, ULPT 20 top patch and the UL US10 corner lock with cylinder and strike plate, so you get everything needed to hang and lock a frameless glass door in one set.
Does the Dorma BTS 60 have hold-open?
Yes. This BTS 60 has a single-point hold-open at 90°. Push the door fully to 90° and it stays open; push it gently and it closes normally.
Can the Dorma BTS 60 be used on a wooden door?
Yes. On wooden or aluminium double action doors, the Machine Only option is used with a door strap and top pivot, which are fitted by your carpenter or fabricator.
What is the Dorma floor spring price for the BTS 60?
At That Hardware Store, the Dorma BTS 60 Machine Only is ₹9,324 (MRP ₹12,156) and the Glass Package with Lock is ₹19,733 (MRP ₹25,728).
How heavy a door can the BTS 60 handle?
Up to 80 kg and up to 1000 mm wide. For heavier or wider doors, choose a higher-capacity floor spring such as the Ozone FS-11400 (65–270 kg, up to 1200 mm wide).
Buy Dorma Floor Spring BTS 60 Online in India
Buy the Dormakaba BTS 60 floor spring from That Hardware Store, as a floor spring machine or as a complete glass door package with lock. Browse more Dormakaba door hardware, or contact us for help choosing the right floor spring for your door.
Dorma Kaba Door Closers
dormakaba is the Swiss-German group behind door closers in offices, hotels and public buildings worldwide. In India it has traded since 1997, first as Dorma Door Controls. We stock two Dorma Kaba closers. Both handle doors up to 80 kg, and we despatch from Delhi across India.
Dorma TS-68 price
The TS-68 costs ₹3,499, against a ₹4,334 list price. It is a surface-mounted hydraulic closer in an aluminium housing. The box includes the mounting kit. It suits wooden and metal doors up to 80 kg. In short, buy it for a normal main door, office door or shop door. Of course, the closer arm will show above the frame.
Dorma ITS-96 price
The ITS-96 EN 2–4 costs ₹17,499, against ₹23,168 list. It is an integrated transom closer. That is, it sits concealed inside the door leaf and frame, so nothing shows once the door closes. It carries the same 80 kg rating as the TS-68. Therefore the extra cost buys an invisible installation, not a stronger closer. Plan it before the door goes on, because the leaf needs routing for it.
Which Dorma closer for your door?
If the door is already in place, the TS-68 is the only realistic choice. Choose the ITS-96 only on a new or replacement door. The joinery must take the routing, and a visible arm must genuinely spoil the look. For lighter doors, meanwhile, the Aido XLC range starts at ₹899. Dorset closers start at ₹1,042.
Frequently Asked Questions about Dorma Kaba Door Closers
What is the price range of Dorma Kaba door closers?
We stock two: the TS-68 at ₹3,499 (list ₹4,334) and the concealed ITS-96 EN 2–4 at ₹17,499 (list ₹23,168). Both are rated for doors up to 80 kg, so the price gap buys a different installation, not a stronger closer.
What is Dormakaba, and how is it related to Aido?
dormakaba is the Swiss-German group behind door closers, access control and locks worldwide, trading in India since 1997 (first as Dorma Door Controls). Aido, which we also stock, is a separate India-based manufacturer that once traded as Dorma XL-C and still belongs to the dormakaba group. So Aido and Dorma Kaba share a corporate history but are sold here as two distinct ranges at different price points.
Should I buy the TS-68 or the ITS-96?
The TS-68 is a surface-mounted closer, so the arm shows above the frame; it fits almost any existing door. The ITS-96 sits concealed inside the door leaf and frame, so nothing shows once the door closes, but the leaf needs routing before it is hung. If the door is already in place, the TS-68 is the only realistic choice. Choose the ITS-96 only on a new or replacement door, and plan it before the joinery is cut.
Is Dormakaba a reliable door closer brand?
Yes. dormakaba is a global group with a presence in India since 1997, and both closers we stock carry the same 80 kg rating regardless of price, so reliability does not vary by model. It is a brand built for offices, hotels and public buildings, which is a heavier duty cycle than most home doors ever see.
Dorma Kaba or Aido XLC — which should I choose?
Both the TS-68 and ITS-96 top out at 80 kg. If your door is lighter than that, the Aido XLC range starts at ₹899 and does the same job for less. Choose Dorma Kaba specifically when you need the concealed ITS-96 look, or simply prefer the dormakaba name on a commercial door.
