Ozone 3D Soft Close Hinges | Full Overlay, Half Overlay & Inset | Clip-On Cabinet Hinges

The Ozone 3D Soft Close Hinges are premium concealed soft close cabinet hinges designed for modular kitchens, wardrobes, cabinets and furniture. With 3D adjustment, clip-on installation and an integrated soft-close mechanism, these hinges provide smooth door closing and precise cabinet-door alignment.

The range is available in three configurations to suit different cabinet-door applications: Full Overlay, Half Overlay and Inset. Select the appropriate hinge variant according to how your cabinet door sits against the cabinet carcass.

The Ozone hinge features a 35mm cup, 100° opening angle and compatibility with 14mm–20mm thick doors.  Whether you are looking for Ozone hinges, Ozone soft close hinges, Ozone 3D hinges, Ozone auto hinges or Ozone hydraulic hinges, selecting the correct hinge configuration is essential for proper installation and cabinet-door movement.

Choose Your Ozone Hinge Variant

Select the hinge configuration according to the position of your cabinet door.

Variant	Application	Door Position
A3S – Full Overlay	Full Overlay Cabinet	Door sits over the cabinet side panel
B3S – Half Overlay	Half Overlay Cabinet	Two doors share/partially cover the cabinet side panel
C3S – Inset	Inset Cabinet	Door sits inside the cabinet opening

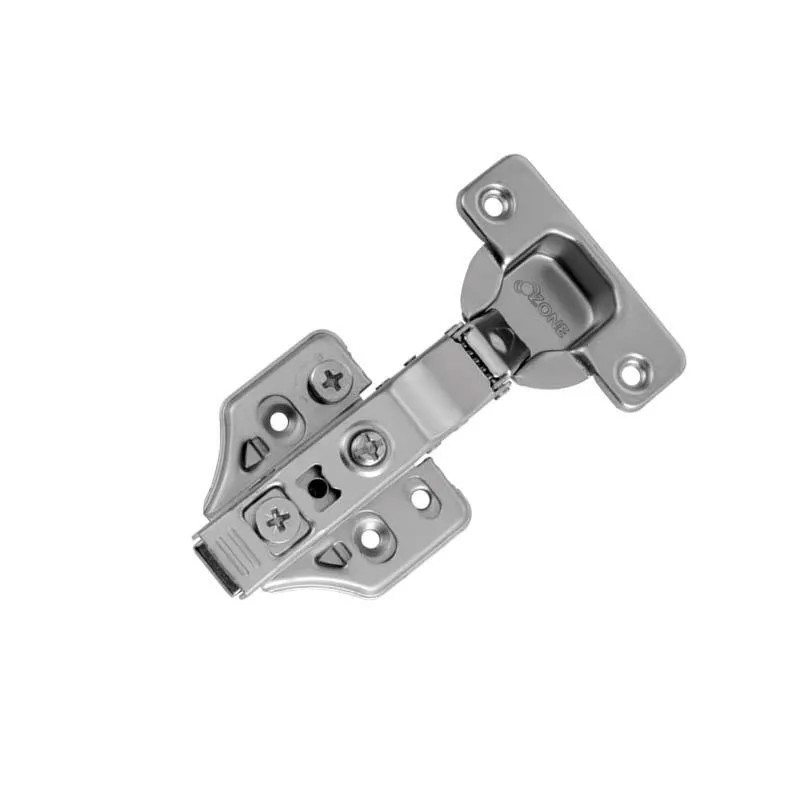

Full Overlay – A3S

The Full Overlay Ozone hinge is designed for cabinet doors that sit completely over the front edge of the cabinet carcass.

This configuration is commonly used for modern modular kitchens, wardrobes and contemporary furniture where the cabinet doors create a continuous external front.

Choose A3S if your cabinet door sits over the cabinet side panel.

Half Overlay – B3S

The Half Overlay Ozone hinge is designed for applications where two cabinet doors share the same cabinet side panel.

Each door partially overlaps the side of the cabinet, making this configuration suitable for furniture with paired doors mounted on the same partition.

Choose B3S if two doors are mounted on the same cabinet side and each door requires partial overlay.

Inset – C3S

The Inset Ozone hinge is designed for cabinet doors that sit inside the cabinet opening rather than over the front of the cabinet carcass.

Inset doors create a flush, built-in appearance and are commonly used in furniture designs where the cabinet frame remains visible around the door.

Choose C3S if your cabinet door sits inside the cabinet opening.

3D Adjustment for Precise Cabinet Door Alignment

The Ozone 3D soft-close hinge allows cabinet doors to be adjusted in three directions, making it easier to achieve accurate alignment after installation.

Height Adjustment

Move the cabinet door vertically to correct uneven gaps and align adjacent doors.

Depth Adjustment

Adjust the door closer to or farther from the cabinet carcass to achieve the desired door position.

Overlay Adjustment

Fine-tune the position of the door relative to the cabinet side panel.

The hinge provides:

• Height adjustment: ±2mm
• Depth adjustment: ±2mm
• Overlay adjustment: +2mm / -4mm

This 3D adjustment system is particularly useful when installing multiple cabinet doors and achieving consistent gaps is important.

Soft Close Cabinet Hinges for Smooth Closing

The integrated soft-close mechanism controls the final movement of the cabinet door, helping prevent sudden slamming.

Compared with conventional cabinet hinges, soft close hinges provide a more controlled closing action and help reduce the noise and impact associated with frequently used cabinet doors.

These Ozone soft close hinges are suitable for:

• Modular kitchen cabinets
• Kitchen shutters
• Wardrobes
• Bedroom cabinets
• Storage cabinets
• Crockery units
• Utility cabinets
• Office furniture
• Residential furniture
• Custom-built furniture

Clip-On Cabinet Hinge with 3-Hole Mounting Plate

The Ozone hinge features a clip-on installation system with a 3-hole mounting plate.

The mounting plate is fixed to the cabinet carcass, while the hinge attaches to the plate using the clip-on mechanism. This makes installation and removal more convenient for carpenters, installers and furniture manufacturers.

The 3-hole mounting plate also provides a secure fixing point for everyday cabinet use.

Ozone Soft Close Hinge Specifications

Specification	Details
Brand	Ozone
Product Type	3D Soft Close Concealed Hinge
Variants	Full Overlay / Half Overlay / Inset
Full Overlay Model	A3S-SC-3DA-NP
Half Overlay Model	B3S-SC-3DA-NP
Inset Model	C3S-SC-3DA-NP
Installation	Clip-On
Mounting Plate	3-Hole
Cup Diameter	35mm
Cup Height	11.3mm
Opening Angle	100°
Door Thickness	14mm–20mm
Overlay Adjustment	+2mm / -4mm
Depth Adjustment	±2mm
Height Adjustment	±2mm
Finish	Nickel Plated
Soft Close	Yes
Durability	Tested up to 50,000 cycles
Salt Spray Test	48 hours
Functional Warranty	5 Years
Surface Warranty	12 Months

How to Choose the Correct Ozone Hinge

Choosing the correct variant depends primarily on how your cabinet door is positioned.

Choose Full Overlay – A3S

Select the A3S Full Overlay hinge when:

• The cabinet door sits over the cabinet side panel.
• You want a continuous external cabinet front.
• You are installing standard full-overlay modular kitchen or wardrobe doors.

Choose Half Overlay – B3S

Select the B3S Half Overlay hinge when:

• Two cabinet doors are mounted on the same cabinet partition.
• Each door partially overlaps the cabinet side.
• Your furniture design uses a half-overlay configuration.

Choose Inset – C3S

Select the C3S Inset hinge when:

• The cabinet door sits inside the cabinet opening.
• The cabinet carcass/frame remains visible around the door.
• You want a flush, framed furniture appearance.

Always check your existing cabinet construction before selecting the hinge variant.

Ozone Hinges for Modular Kitchens

The Ozone 3D soft close hinge is particularly suitable for modular kitchen cabinets where doors are frequently opened and closed and precise alignment is important.

The combination of soft closing, 3D adjustment and clip-on installation makes the hinge suitable for modern kitchen shutters as well as wardrobes and other furniture.

For a modular kitchen with multiple cabinet doors, the correct overlay configuration is especially important because it determines how the doors sit against the cabinet carcass.

Ozone Hinges for Wardrobes & Furniture

These concealed Ozone cabinet hinges can also be used for wardrobes, storage units, crockery cabinets, utility cabinets and other furniture applications.

The 3D adjustment is useful for maintaining consistent door gaps across larger furniture installations, while the soft-close mechanism provides controlled closing during everyday use.

Ozone Hydraulic Hinges

Customers searching for Ozone hydraulic hinges may also be looking for Ozone soft-close cabinet hinges.

The terminology used for cabinet hinge damping mechanisms can vary between manufacturers and online searches. Rather than selecting a hinge based only on the word “hydraulic”, check the actual product specifications for soft close, adjustment type, overlay configuration, opening angle and door thickness.

This Ozone range is specified as a soft-close concealed hinge with 3D adjustment.

Why Choose Ozone 3D Soft Close Hinges?

Smooth Soft Closing

The integrated soft-close mechanism controls the final movement of the cabinet door and helps reduce slamming.

Precise 3D Adjustment

Height, depth and overlay adjustment makes it easier to align cabinet doors accurately.

Three Cabinet Configurations

Choose between Full Overlay, Half Overlay and Inset depending on your cabinet construction.

Convenient Clip-On Installation

The clip-on design allows the hinge to be attached to and removed from the mounting plate conveniently.

35mm Hinge Cup

The standard 35mm cup diameter makes the hinge suitable for compatible furniture-door applications.

Durable Everyday Performance

The hinge has been tested for up to 50,000 opening and closing cycles.

Corrosion Resistance

The hinge has undergone a 48-hour salt spray test.

Long-Term Warranty

The product comes with a 5-year functional warranty and 12-month surface warranty.

Ideal For

The Ozone 3D soft close hinge range is suitable for:

• Modular kitchens
• Kitchen cabinets
• Wardrobes
• Bedroom furniture
• Storage cabinets
• Crockery units
• Utility cabinets
• TV units
• Office furniture
• Residential furniture
• Custom furniture
• Interior renovation projects

How to Select Your Ozone Soft Close Hinge

1. Measure your cabinet door thickness

This hinge range is designed for compatible doors between 14mm and 22mm thick.

2. Check how the door sits on the cabinet

Determine whether your door is:

• Full Overlay
• Half Overlay
• Inset

3. Select the appropriate Ozone variant

• A3S → Full Overlay
• B3S → Half Overlay
• C3S → Inset

4. Check the hinge specifications

Confirm that the 35mm cup, 100° opening angle and adjustment ranges are suitable for your cabinet design.

Ozone Soft Close Hinges Price

The Ozone soft close hinges price can vary depending on the hinge configuration and application.

When comparing Ozone hinges price, make sure you are comparing the same type of hinge.

For a complete comparison, consider:

• Hinge configuration
• Full overlay / half overlay / inset
• 2D or 3D adjustment
• Soft-close mechanism
• Mounting plate
• Opening angle
• Door thickness compatibility

This helps ensure that you choose the correct hinge rather than simply choosing the lowest-priced option.

Frequently Asked Questions

What is the difference between A3S, B3S and C3S Ozone hinges?

The three variants are designed for different cabinet-door configurations:

• A3S: Full Overlay
• B3S: Half Overlay
• C3S: Inset

Which Ozone hinge should I use for a full-overlay cabinet?

Choose the A3S Full Overlay variant.

Which Ozone hinge should I use for a half-overlay cabinet?

Choose the B3S Half Overlay variant.

Which Ozone hinge should I use for an inset cabinet door?

Choose the C3S Inset variant.

Are these Ozone 3D hinges?

Yes. The hinges provide adjustment in height, depth and overlay.

Do Ozone soft close hinges work for modular kitchens?

Yes. They are suitable for compatible modular kitchen cabinets and other furniture applications.

What door thickness is compatible?

The specified door thickness is 14mm–20mm.

What is the cup diameter?

The hinge has a 35mm cup diameter.

What is the opening angle?

The opening angle is 100°.

Does the hinge come with a mounting plate?

This range uses a 3-hole mounting plate. Check the selected product variant and package contents before ordering.

Are these Ozone hydraulic hinges?

They are specified as soft-close concealed hinges. If you are searching for Ozone hydraulic hinges, compare the manufacturer’s specifications for the particular model.

Are these auto hinges?

They are soft-close cabinet hinges. While “auto hinges” is commonly used as a search term for self-closing furniture hinges, the defining feature of these models is their integrated soft-close mechanism.

How long is the Ozone hinge warranty?

The product has a 5-year functional warranty and a 12-month surface warranty.

Buy Ozone 3D Soft Close Hinges Online

Upgrade your kitchen, wardrobe or furniture with Ozone 3D Soft Close Hinges, available in Full Overlay, Half Overlay and Inset configurations.

With 3D adjustment, clip-on installation, a 35mm cup, 100° opening angle and soft-close functionality, the range is designed for smooth and precise cabinet-door operation.

Select the correct variant according to your cabinet construction:

A3S – Full Overlay | B3S – Half Overlay | C3S – Inset

If you are comparing Ozone hinges price, Ozone soft close hinges price, Ozone hydraulic hinges or Ozone auto hinges, make sure you select the correct configuration and specifications for your cabinet before ordering.
